FIELD SHELTERS

FIELD SHELTERS

Designed to withstand the British weather

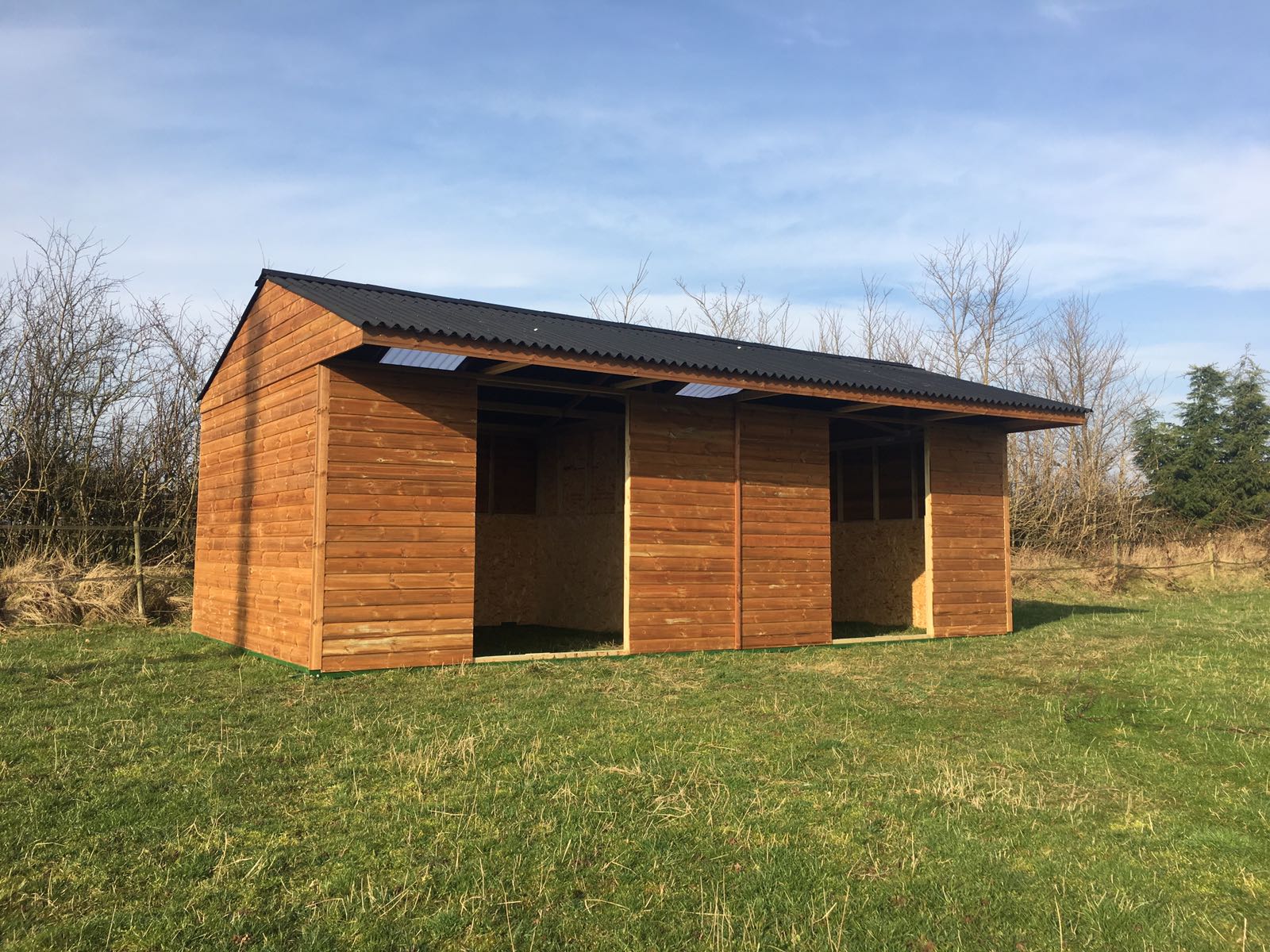

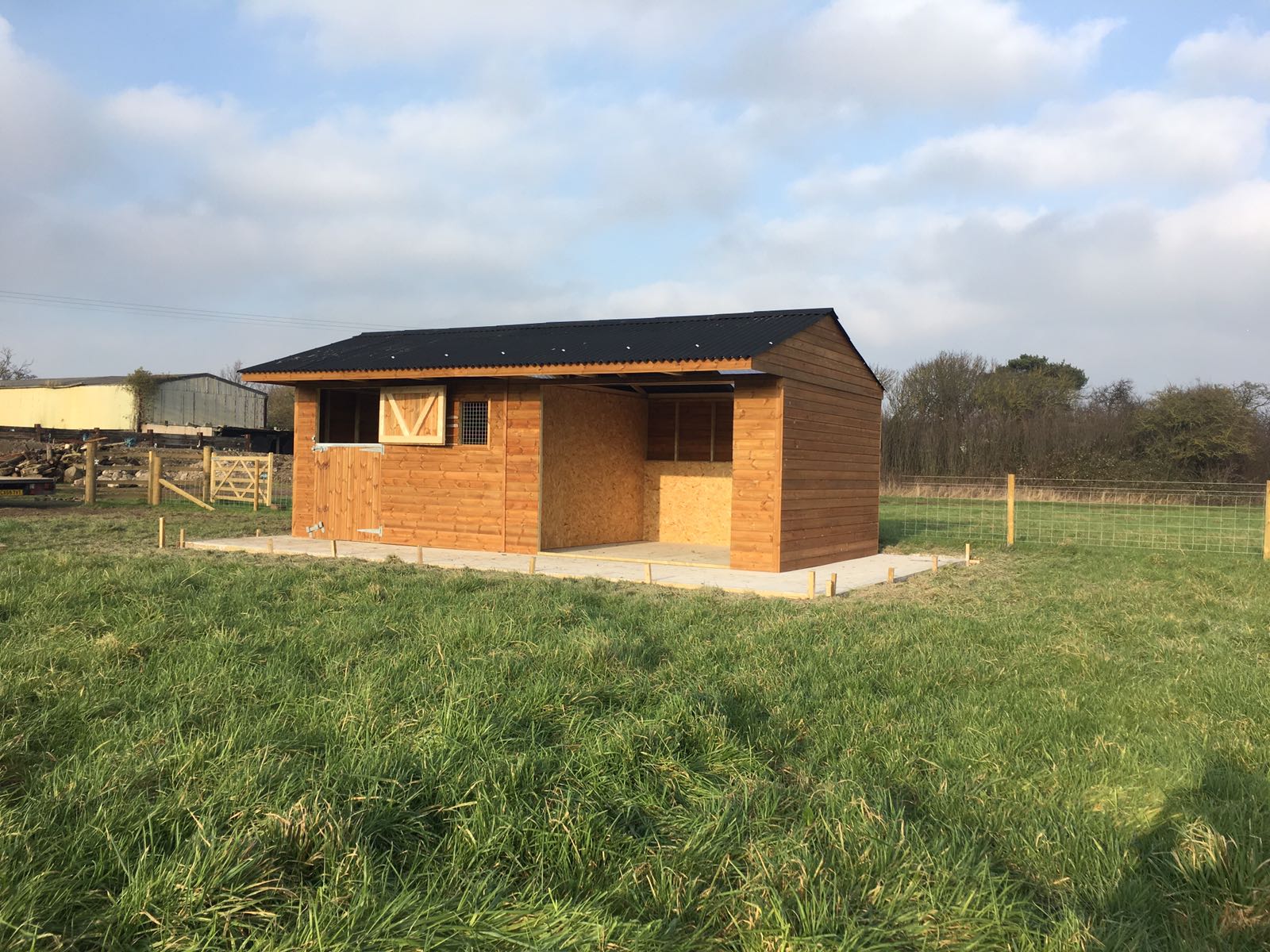

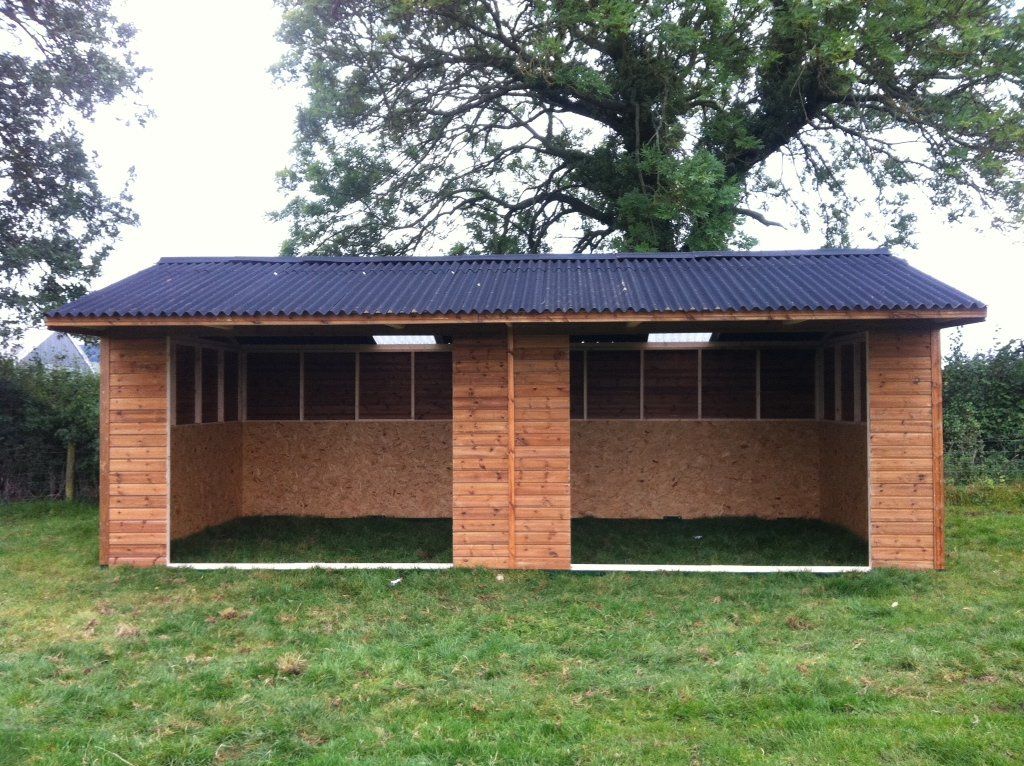

All our field shelter boxes are 12ft x 12ft and can be built in multiples with or without internal partitions, Field gates can be added to give the option of containing your horses if needed and can be provided in Galvanised steel or timber.

Durable

Our Field Shelters are built to withstand the british weather and are built with this in mind, Onduline roofing is designed to cope with over 100 mph winds.
There is an option to have the front 3ft overhang cladded making the building more astheticaly pleasing but we recommend free standing field shelters to be left open to allow more air flow during high winds.
All field shelters should be positioned near cover from wind if possible, this is not always the case so we do offer a soultion for buildings that are fully open to the elements.
Ground anchors can be an expensive upgrade but can be a great upgrade when the field shelter is fully open to prevaling winds, the length of ground anchor varies on the size of the building and various other factors, please call us for more information on this product.

SPECIFICATION:



  • Frame work - 3 x 2 CLS timber (38mm x 64mm)
  • Cladding is 125mm x 19mm nominal shiplap treated for long life performance.
  • Roof purlins 4 x 2 CLS at 560mm centres (38mm x 89mm)
  • FREE Roof Light in each 12ft box.
  • Apex roofs as standard.
  • Black Onduline roofing has a 15 year life expectancy.

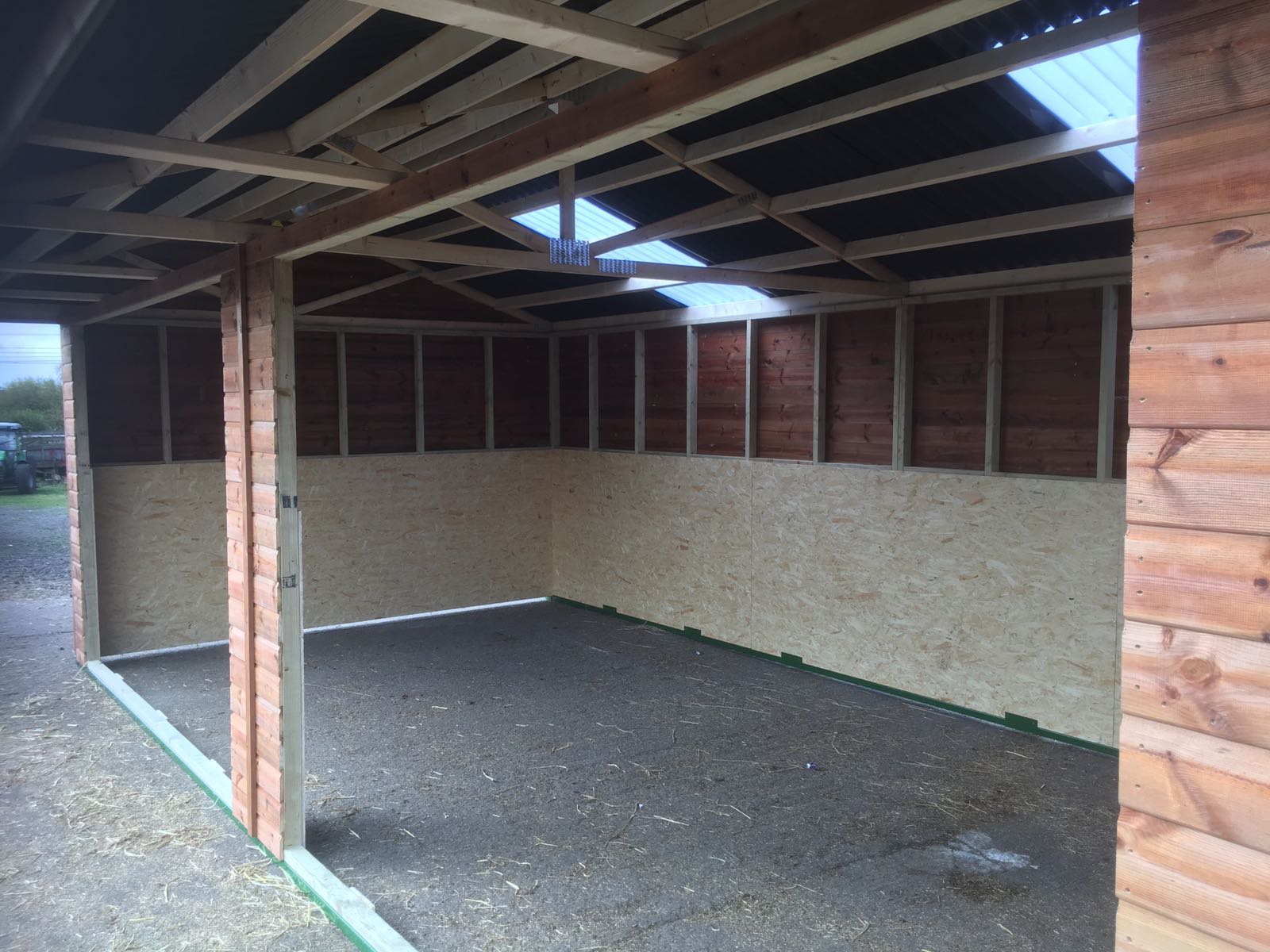

  • The internal boarding is lined to 4ft as standard with sterling board.
  • Standard 3ft overhang to the front.
  • Height to ridge is 10ft, 7ft wall height.

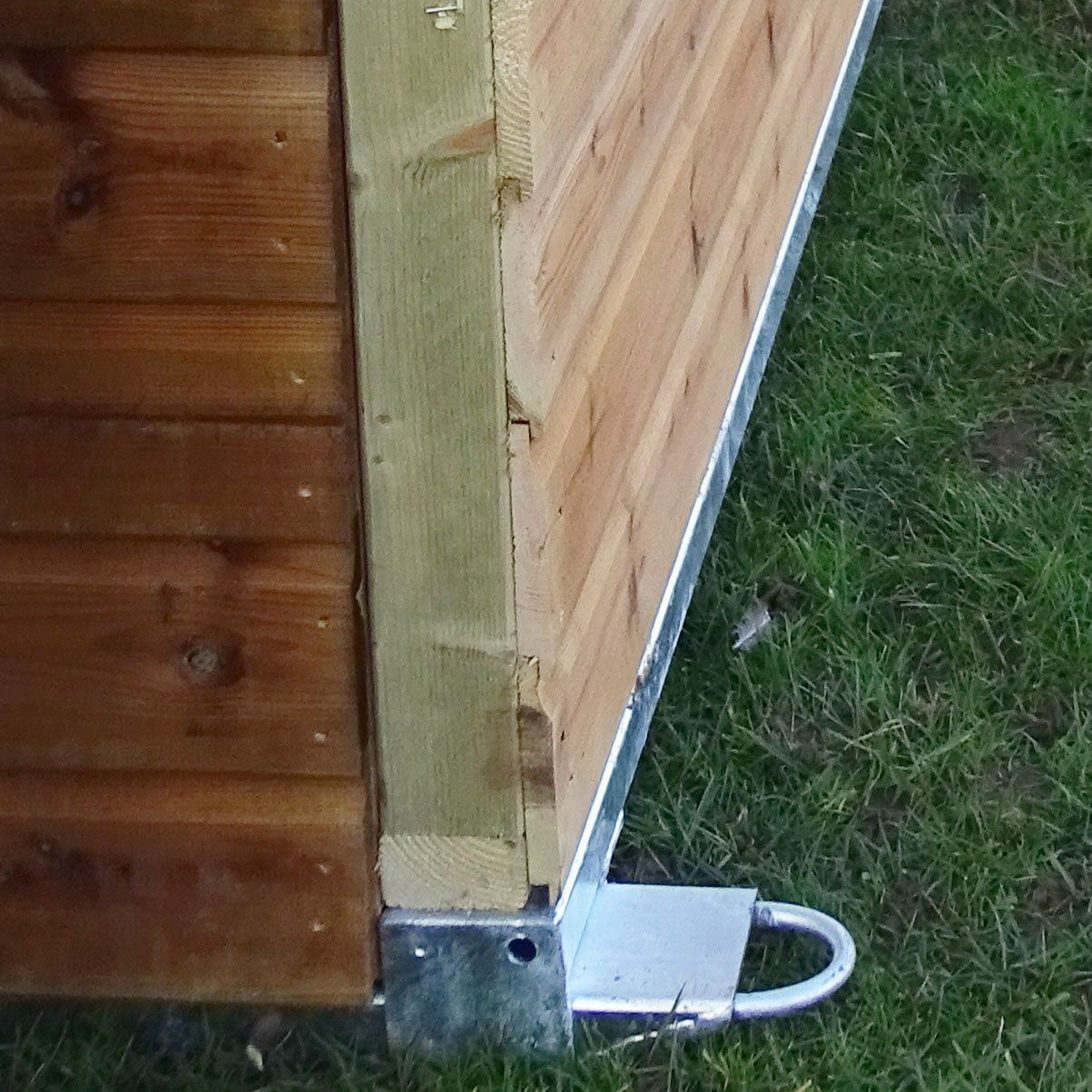

  • OPTIONAL Steel skids to make the building fully mobile (no planning needed)
